Plans

A yacht plan may come in one of two forms; as a lines plan or as a construction plan.

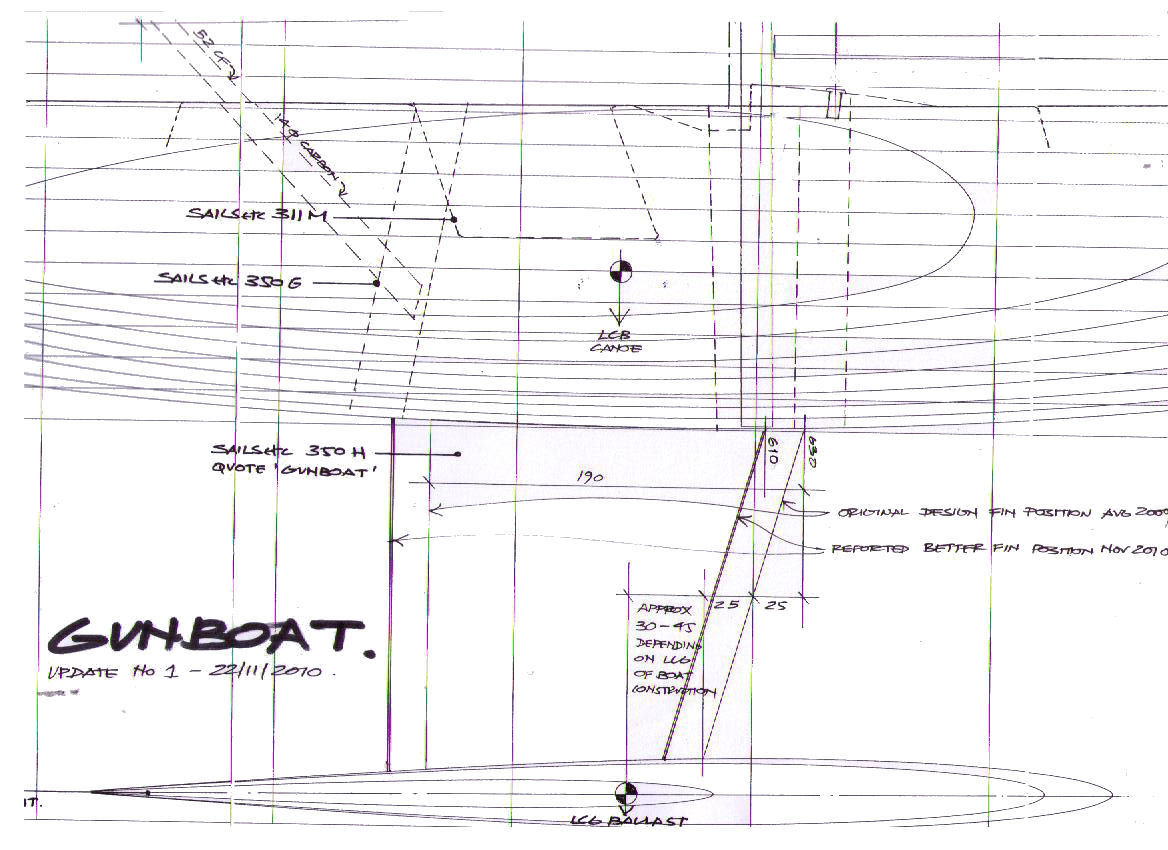

A lines plan is a two dimensional representation of the hull lines. The position and dimensions of the mast, fin, rudder and ballast are shown but no construction details are given. All SAILSetc lines plans since 1996 show the sections full size as well as reduced sections allowing for the plank thickness (usually 3.5 mm).

A construction plan gives more information concerning the component parts but the method of construction is not explained in detail. Chris Jackson’s book ‘Radio Controlled Racing Sailboats’ is the best current source of information regarding the planking process – go to the BOOK section of this site.

Purchase of a yacht plan entitles the buyer to construct ONE ONLY yacht to those lines. For additional yachts please refer to SAILSetc.

No rig details are shown on One Metre class plans. Other class plans show basic sail dimensions only unless otherwise indicated. Our One Metre Rigging Plan RP16d gives complete details and instructions for completing one of our Rig Packs.

VPP - indicates the design compares very well with others using our speed prediction program and we recommend that you choose from these if you want a modern and competitive design.

The plans are listed in order of class. Within each class the most recent are listed first.

Yacht plans

Miscellaneous			Price
Ballasts	2003	Lines plan only	8.50
If you cannot source a good ballast locally, this may be the solution. The lines of patterns for ballasts suitable for an IOM, M, 6M and an A Class are shown. Carve a balsa pattern and let a foundry cast it. Instructions are given to allow scaling to provide any ballast from 1 to 22 kgs.
Foils - All classes	2006	Lines plan only	5.00
SAILSetc lines plans do not show the section shapes for the fin or rudder. We recommend using out moulded fins and rudders for best stiffness and lowest drag. This plan shows publicly available section shapes that can be used for the various applications from IOM to A Class, fins and rudders. -  back to the top  -
GBR 36" restricted			Price
SPARKLET	2003 3.6 ± 0.1 kg	Lines plan only	10.00 VPP
Further refined version of SPARKLE. The hull form has slight Vee sections but is easy to plank. Build with balsa and skin with superlight glass/epoxy. Foils shown are SAILSetc 370 and 359c. Use a lightened IOM ballast.
SPARKLE	2003 3.9 ± 0.1 kg	Lines plan only	10.00 VPP
Further refined version of SPARTAN. The similar hull form is easy to plank. Build with balsa and skin with superlight glass/epoxy. Foils shown are SAILSetc 370 and 359c. Use a lightened IOM ballast. The prototype used the standard three IOM rigs plus an extra large No 1+ conventional rig with shrouds and placed 2nd in the 2003 championship.
SPARTAN	1999 3.7 ± 0.1 kg	Lines plan only	10.00
Refined version of SPAR. The similar hull form is easy to plank. Build with balsa and skin with superlight glass/epoxy. Foils shown are SAILSetc 338 and 359c. Use a lightened IOM ballast. The prototype used the standard three IOM rigs plus an extra large No 1+ conventional rig with shrouds and won the 2001 national championship with Vernon Appleton at the helm.
SPAR	1998 3.6 ± 0.1 kg	Lines plan only	10.00
First shot design for this class. Wide and rounded hull form is easy to plank. Build with balsa and skin with superlight glass/epoxy. Foils shown are SAILSetc 338 and 359c. Use a lightened IOM ballast. The prototype used the standard three IOM rigs plus an extra large No 1+ conventional rig with shrouds. -  back to the top  -
International One Metre			Price
ZIG ZAG	2006	Lines plan only	15.00 VPP
Round bilge hull of narrower beam for planked construction. Sections and frames shown full size with plan and profile at half size. Use thin plywood for the foredeck and cockpit. Use the moulded carbon/epoxy fin and plastic rudder 370C/359z. Full rig details on rig plan RP16d
VEKTOR	2006	Lines plan only	15.00 VPP
Round bilge hull of moderate beam for planking construction. Sections and frames shown full size with plan and profile at half size. Use thin plywood for the foredeck and cockpit. Use the moulded carbon/epoxy fin and plastic rudder 370C/359z. Full rig details on rig plan RP16d
NIMBUS mkIII	2005	Construction plan One metre	12.50 VPP
Updated version of this round bilge hull for planked or moulded construction. Very complete construction details for hull. Marine Modelling plan and best choice for beginners to the sport and to home building. Full rig details are shown.
BOXKITE	2002	Construction plan	15.00 VPP
Hard chine version of KITE with four panels each side for a quick to build hull. Use thin plywood to make the panel shapes shown full size on this Marine Modelling plan. Full rig details are also shown or use SAILSetc rig plan RP16d
KITE	2001	Lines plan only	15.00 VPP
Round bilge hull of moderate beam for planked construction. Sections and frames shown full size with plan and profile at half size. Use thin plywood for the foredeck and cockpit. Use the moulded carbon/epoxy fin and plastic rudder 370c/359z. Full rig details on rig plan RP16d. -  back to the top  -
International Marblehead			Price
MONARCH	2003	Construction plan 5.0 ± 0.2 kg	15.00 VPP
Close sister to PRIME NUMBER. Marine Modelling plan with a good deal of construction detail, an ideal project after NIMBUS. Details of carbon/balsa fin/rudder construction are given; or use SAILSetc moulded items 370a/358. Rig plan included. Winner of 2003 ITA national championship.
ASTRA	1999	Lines plan only 4.9 ± 0.2 kg	15.00 VPP
The plan shows two versions at 180 and 200 mm maximum beam of a hull form similar to STRAD and ROK. Needs to be built light for best performance. The carbon/epoxy fin and rudder 370a/358 are recommended. Mario Jorini’s timber ASTRA 200 placed 4th at the 2000 World Championship.
CUMULUS	1996	Lines plan only 5.0 ± 0.2 kg	5.00
A close sister to PARADOX. Plan includes a good deal of construction detail and the boat is an ideal project to follow on from NIMBUS/NIMBUS II. Details of balsa/carbon fin and rudder construction are given; or use items 370a/358a. Rig plan for economical swing and shroudless rigs included. Slightly higher displacement makes construction less critical.
WAFER	1991	Lines plan only 4.9 ± 0.2 kg	5.00
Narrow version of the successful ENIGMA hull form and close sister to PARADOX. Needs to be built light for best performance. Carbon/epoxy foils items 370a/358a recommended. -  back to the top  -
International Ten Rater			Price
IONA Ten Rater	2005	Lines plan only	FREE
In fact this is not a plan in the SAILSetc plans range but it is a new plan drawn especially for ‘Model Yachting’ the American Model Yachting Association. See the AMYA Quarterly Newsletter Issue 133 February/March 2004. You may get it full size in electronic format from the AMYA Ten Rater Class Secretary, Mark Gee. It’s free. Files formats are .PDF and .DXF. Contact Mark on 10r@amya.org or TenRaterSec@aol.com or see the AMYA website www.amya.org. You can also buy paper printed copies for around $10 post free within the USA. Building shadows are shown with a 3 mm reduction for 3.5 mm thick planks. Position of foils, rig and ballast are shown. Enough detail is given for the ballast for you to make a pattern for casting. The design is a development of IOTA and is optimised for light airs conditions and ability to outpace a Marblehead rigged as a Ten in all conditions. Free of royalty to individual builders, SAILSetc reserves the right to royalties from multiple builders. Thanks go to Mark Gee and the AMYA for the opportunity to test this method of distributing plans and to Phillip Playle for the AutoCAD work. Mark has prepared a plug and mould for the hull and is making hull mouldings available. Other parts suitable for IONA may be obtained from the SAILSetc component range.
IOTA	2001	Lines plan only 5.8 ± 0.1 kg,1.07 m2 sail area	25.00 VPP
A hull form based on PRIZM and carefully optimised to beat a Marblehead rigged as a 10R in all conditions. Frame sizes are given for 3.5 mm thick planks. Make the fin & rudder as shown on the MONARCH plan or use SAILSetc moulded items 370a/358b. Sail area circa 1.07 m2.
STRATUS	1997	Lines plan only 6.0 ± 0.2 KG, 1.05 m2 sail area	8.50
A Marine Modelling plan with a simple hull shape ideally suited to planked construction. Frame sizes are given for 3.5 mm thick planks. Make the fin and rudder as shown on the CUMULUS plan or use SAILSetc moulded items 370a/358a. -  back to the top  -
GBR Six Meter			Price
ROCOCO	1997	Lines plan only 12 kg, 0.72 m2 sail area	15.00 VPP
A development of the RENAISSANCE hull form. Sections shown full size. Other lines shown at half size. Frame sizes are given for 3.5 mm thick planks. Make fin & rudder as shown on the MONARCH plan or use moulded items 350d/350f/359d/207 for best results.
REVIVAL	1988	Lines plan only 12 kg, 0.72 m2 sail area	15.00
This design is a close sister to the successful RENAISSANCE design but with more sail area and similar excellent performance. Sections shown full size. Use moulded items 350d/350f/359d/207 for best results. -  back to the top  -
International A Class			Price
PRIVATEER - 17 kg, 1.0 m2	2006	Lines plan only	30.00 VPP
Sections, frames and alternative ballast are shown full size. Frame sizes are given for 3.5 mm thick planks. Other lines are shown at quarter size. Make fin & rudder as shown on the MONARCH plan or use moulded items 350e/350f/359d/209 for best results.
FRIGATE	2002	Lines plan only 21 kg, 1.10 m2 sail area	30.00 VPP
Sections, frames and alternative ballast are shown full size. Frame sizes are given for 3.5 mm thick planks. Other lines are shown at quarter size. Make fin & rudder as shown on the MONARCH plan or use moulded items 350e/350f/359d/209 for best results.
BATTLESHIP	1997	Lines plan only 21 kg, 1.05 m2 sail area	30.00 VPP
Sections, frames and alternative ballast are shown full size. Frame sizes are given for 3.5 mm thick planks. Other lines are shown at quarter size. Make fin & rudder as shown on the MONARCH plan or use moulded items 350e/350f/359d/209 for best results. -  back to the top  -
USA One Metre			Price
1st IMPRESSION	1998	Lines plan only 2.7 kg ± 0.1 kg	20.00
Sections and reduced sections are shown full size. The profile and plan view are half size. Use SAILSetc fin item 370 (quote 1st IMPRESSION when ordering) and rudder moulding item 358a. Moulded and sold in the USA by Mike Hughes as SABRE. -  back to the top  -
USA & JPN 36/600			Price
3rd DEGREE	1999	Lines plan only 2.7 kg ± 0.1 kg	20.00
Sections and reduced sections are shown full size. The profile and plan view are also full size. Use SAILSetc fin item 370 (quote 3rd DEGREE when ordering) and rudder moulding item 358a. -  back to the top  - Rig plans International One Metre International Marblehead Other classes
International One Metre			Price
IOM rigging	RP16d	with instructions	1.50
Shows the current SAILSetc rigging pack components in assembled form and contains all the information you need to assemble these parts. Both lightweight and SAILSetc type headsail booms are shown as well as various adaptations for non-standard items, hints and tips etc. Suitable also for other small classes e.g. GBR 36” Restricted -  back to the top  -
International Marblehead			Price
M swing rig	RP14c	with instructions	3.00
Shows the current SAILSetc rigging pack components in assembled form and contains all the information you need to assemble these parts. The A and B rigs use round carbon tubes and the lower rigs use carbon GROOVY mast section. As supplied with '92/95' kits
Gizmo	RP14b	plan only	2.00
This is for the servoless remote fine tuning of a swing rig as wind speed changes. The plan shows the components of our add on kit in assembled form. For use on A and B+ swing rig kits.
M shroudless rig	RP15d	with instructions	8.00
Shows the 2007 version of the SAILSetc rigging pack components in assembled form and contains all the information you need to assemble these parts. Details for round carbon tube masts and GROOVY carbon mast section are given. Specially suitable for the 2007 Marblehead, PRIME NUMBER and Ten Rater DIAMOND and also for most Marbleheads and Ten Raters.
M shroudless rig	RP15c	with instructions	4.00
Shows the pre 2007 SAILSetc rigging pack components in assembled form and contains all the information you need to assemble these parts. Details for round carbon tube masts and GROOVY carbon mast section are given. Suitable for ROK, STRAD, PRIZM, PRIME NUMBER and also for most Marbleheads and Ten Raters. -  back to the top  -
Other classes			Price
USA One Metre rig	RP16u	plan only	2.00
For the AMYA class. The plans show suitable sails sizes and spar sizes based on the contents of our kits for the class. The spars are all round carbon tubes.
36/360 swing rig	RP18	with instructions	3.00
For the AMYA class, as supplied with kit.
6M/10R	RP30	with instructions	3.00
The plans show suitable spar sizes and rigging detail based on the contents of our conventional kits with shrouds and spreaders for the classes. -  back to the top  - All prices are in GBP and include VAT. For prices outside Europe – deduct 14.9%
